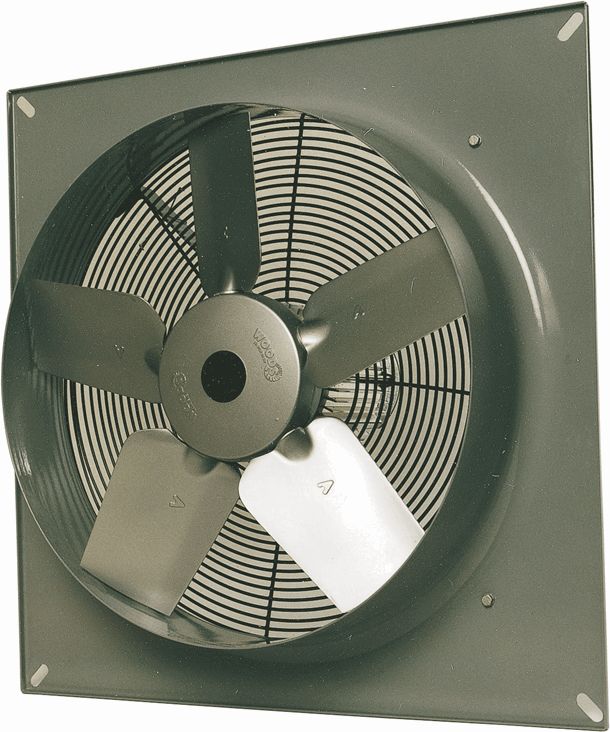

JMP Plate Mounted Axial – 3PH 71JMP/20/6/6/24 Flakt Woods
PRODUCT FACTS
• Air flow up to 8.17 m3/s
• Static pressures up to 260 Pa • Motor protection IP55
• Speed controllable
• Supplied fully assembled
• Full range of accessories
• Speed controllable
ELECTRICAL SUPPLY
380-420V/50Hz/3f
TEMPERATURE RANGE
-40oC to 50oC as standard. Suitable for 70°C at full speed.
SIZES
315, 355, 400, 450, 500, 560, 630, 710 & 1000 mm
PLATE
Plates manufactured from mild steel with powder coat finish, fans are supplied as standard with motor side guard.
MOTORS
All motors are totally enclosed airstream rated class F insulation. Constructed from aluminium or cast iron as standard with special ’T’ slot, or pad mounted fixings Suitable for horizontal through to vertical shaft operation. Supplied IP55 with removable drain plugs. These motors are suitable for inverter speed control down to 20% of full speed.
IMPELLERS
A unique high efficiency aerofoil section blade. Woods impellers
are all high pressure die cast to offer thin aerofoil sections for low generation of noise. Every cast aluminium component is X-ray examined using Real Time Radiography inspection prior to assembly. The maximum pitch angles shown allow for speed control by frequency inverter.
